เครื่องกวนผสมชนิดใช้ใบพัดพร้อมชุดอุปกรณ์
อื่น ๆ

เครื่องกวนผสมชนิดใช้ใบพัดพร้อมชุดอุปกรณ์

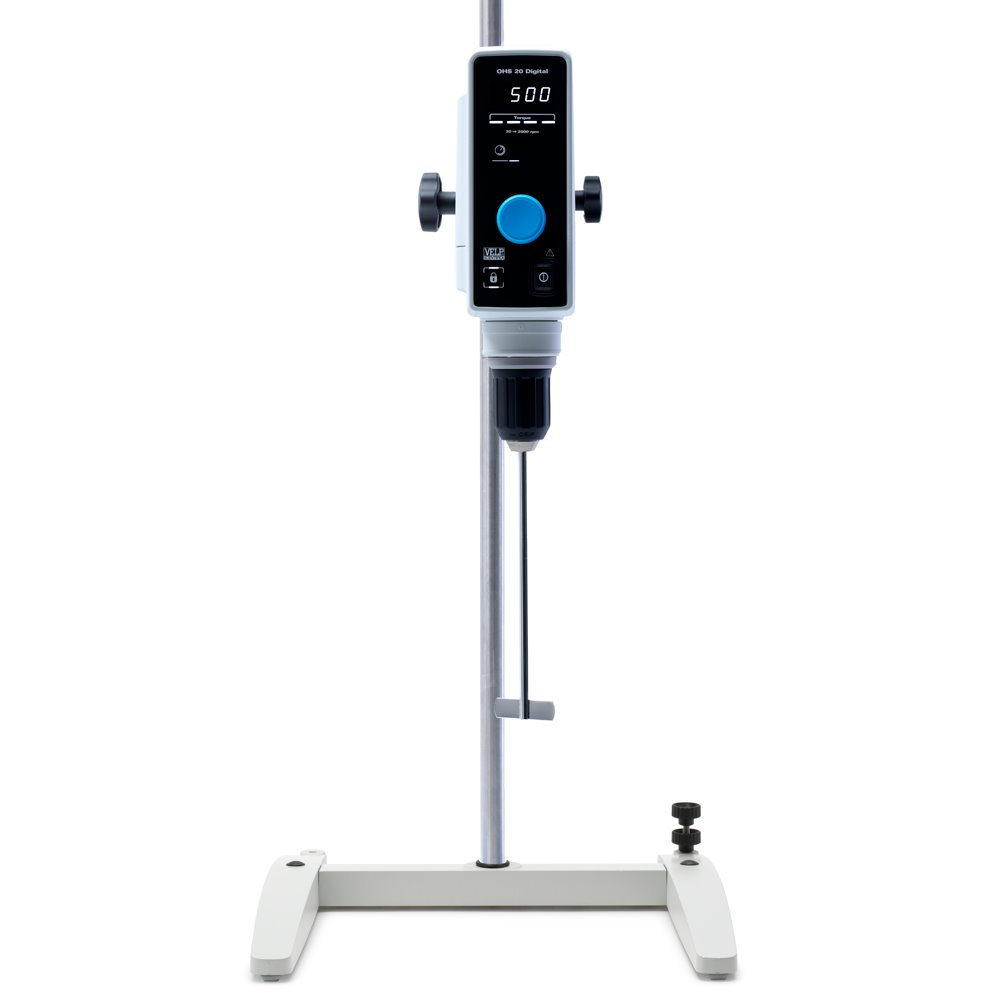

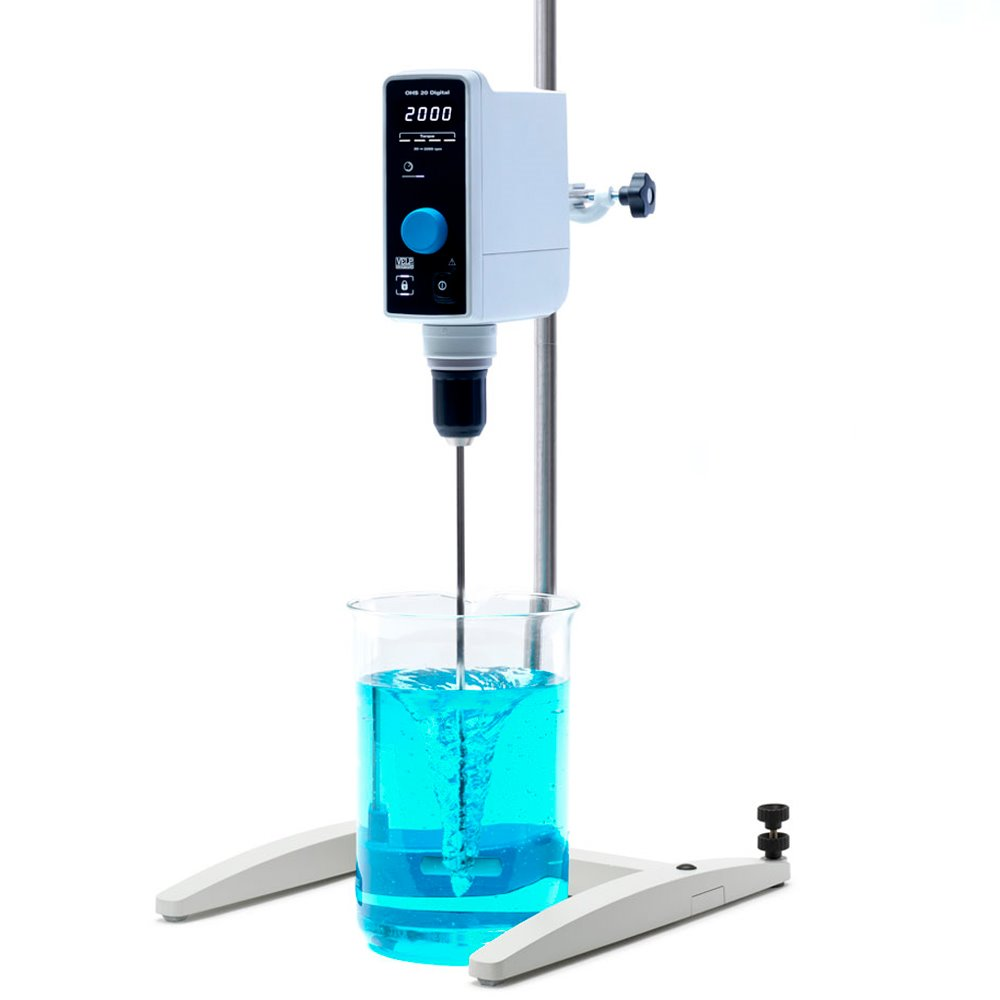

Overhead Stirrer

-Brushless DC Motor Technology: Provides high efficiency and constant torque across the entire speed range, while ensuring silent operation and long-term durability without maintenance. -Smart Torque Monitoring: Features a digital display that shows real-time torque changes, allowing users to monitor the viscosity variations of the fluid during the stirring process. -Compact and Robust Design: The technopolymer structure is highly resistant to chemicals and splashes (IP 54 rating), m
รหัสรายการ
F201A0155 VELP
ห้องปฏิบัติการ
709 ห้องปฏิบัติการวิทยาศาสตร์ Science Maker Laboratory (SML)
รูปแบบบริการ
-
ยังไม่เปิดให้ยื่นคำขอออนไลน์

รายละเอียด

Specifications Overhead Stirrer


Parameter

Specifications

Model

OHS 20 Digital

Max Stirring Volume ($H_2O$)

25 Litres

Speed Range

30 – 2,000 rpm

Max Torque

20 Ncm

Max Viscosity

10,000 mPa·s (cP)

Speed Control Accuracy

± 1 rpm

Protection Degree

IP 54

Chuch Range (Shaft diameter)

1 – 10 mm

Dimensions (WxHxD)

90 x 285 x 235 mm

Weight

2.5 kg

Display

Digital (Speed & Torque)
