การทดสอบตรวจสอบ

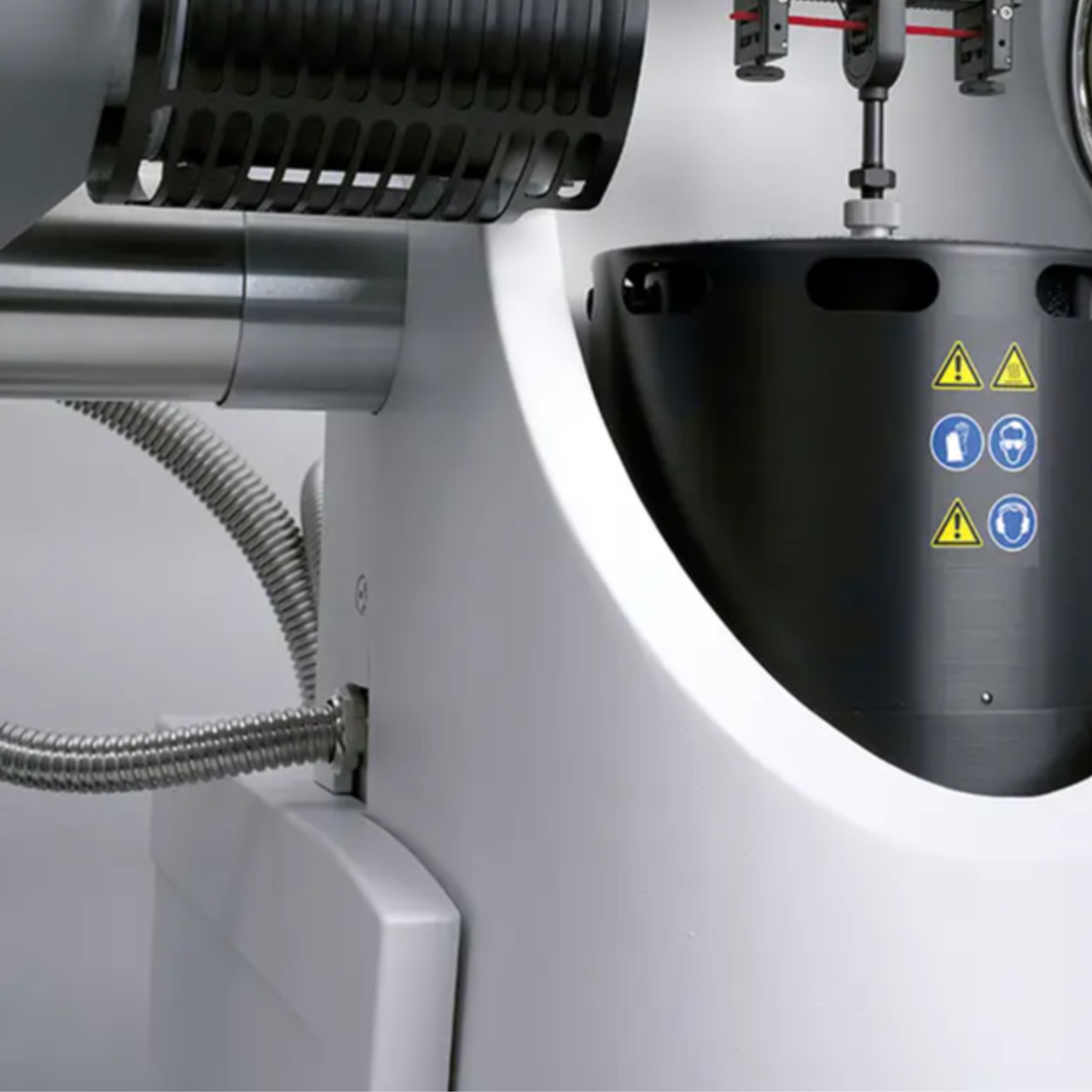

เครื่องวิเคราะห์การคุณสมบัติทางกลของสารตัวอย่างเมื่อได้รับความร้อน แรง และความถี่
Dynamic Mechanical Analyzer (DMA)
- Measurement of displacement and force measures both displacement and force, which results in a very accurate determination of the modulus values.- Wide force range from 1 mN to 40 N, follows you to measure very soft and very stiff samples- Broad frequency range from 0.001 to 1000 Hz means you can perform measurements under real conditions or more rapidly at higher frequencies- Extremely wide stiffness range means you can measure a sample from the glassy to the liquid state in one s
- รหัสรายการ
- METTLER TOLEDO; DMA/SDTA1+
- ห้องปฏิบัติการ
- 506 ห้องปฏิบัติการทดสอบวัสดุวิสโค-อิสลาสติก Viscoelastic Material Testing Laboratory
- จองใช้
- ฿1,000.00 / ชม.
- ส่งตัวอย่างทดสอบ
- คำนวณตามข้อมูลการทดสอบ
- รูปแบบบริการ
- ส่งตัวอย่าง จองเครื่อง
ขอใช้บริการรายการนี้
ต้องเข้าสู่ระบบก่อนยื่นคำขอใช้บริการ
รายละเอียด
Specifications - Thermal Analysis System DMA/SDTA 1+
Temperature accuracy (±) | 0.5 K |
Technique | Dynamic Mechanical Analysis (DMA) |
Force Range | 1 mN – 40 N |
Applications | Crystallization |
Temperature Range | -150 °C – 500 °C |
Temp. Range | -150 °C – 500 °C |
Sensor Output | Loss Factor (tan delta) |
Frequency Range | 0.001 to 1000 Hz |
Tan Delta Range | 0.0001 – 5,000 |
Displacement Range (±) | 1.6 mm |
Stiffness Range | 10 N/m – 10⁸ N/m |
