เครื่องวิเคราะห์มุมสัมผัส
การทดสอบตรวจสอบ

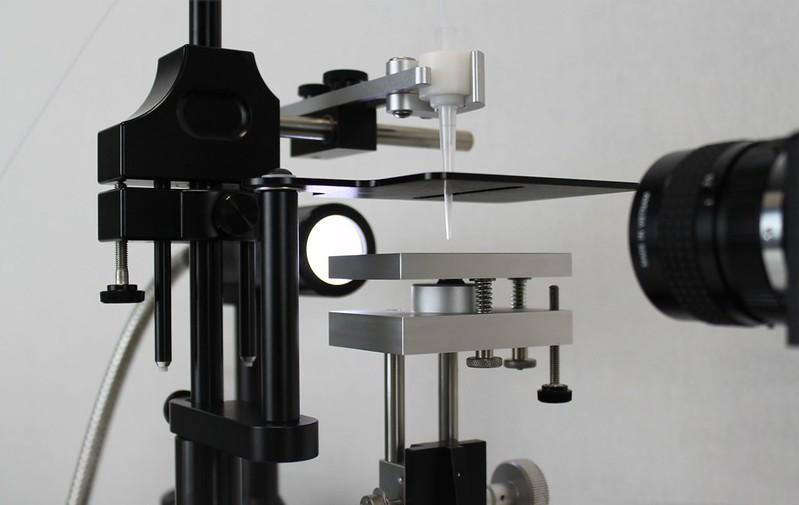

เครื่องวิเคราะห์มุมสัมผัส

Contact Angle

-Fully Automated Surface Characterization Features software-driven automated dispensing and tilting systems to ensure maximum precision and repeatability in contact angle and surface energy measurements. -Comprehensive Dynamic Study Capabilities Easily analyze advancing, receding, and roll-off angles, as well as contact angle hysteresis, providing deep insights into surface wetting and heterogeneity. -SuperSpeed Digital Imaging Technology Equipped with a U4 Series camera capturing up to 520 fr
รหัสรายการ
290, RamhartRame Hart
ห้องปฏิบัติการ
509 ห้องปฏิบัติการทดสอบเชิงสมบัติทางเคมีและเคมีไฟฟ้า Chemical & Electrochemical Analysis Laboratory
รูปแบบบริการ
-
ยังไม่เปิดให้ยื่นคำขอออนไลน์

รายละเอียด

Specifications - Contact Angle


Property

Description

Technique

Automated Contact Angle & Surface Tension Analysis

Camera System

U4 Series SuperSpeed Digital (520 frames/second)

Automation

Software-driven Automated Tilting & Dispensing Systems

Software

DROPimage Advanced (Experiment design & reporting)

Measurement Range

Contact Angle: 0 to 180°; Surface Tension: 0.01 to 2500 mN/m

Resolution

Contact Angle: 0.01°; Surface/Interfacial Tension: 0.01 mN/m

Illumination

Fiber optic illuminator with adjustable backlighting

Applications

Wetting, Surface Energy, Adhesion, Cleanliness, Absorption

Optional Modules

Oscillator (Elasticity), Environmental Fixture, Wafer Support
