เครื่องศึกษาสัมประสิทธิ์แรงเสียดทานของวัสดุ
การทดสอบตรวจสอบ

เครื่องศึกษาสัมประสิทธิ์แรงเสียดทานของวัสดุ

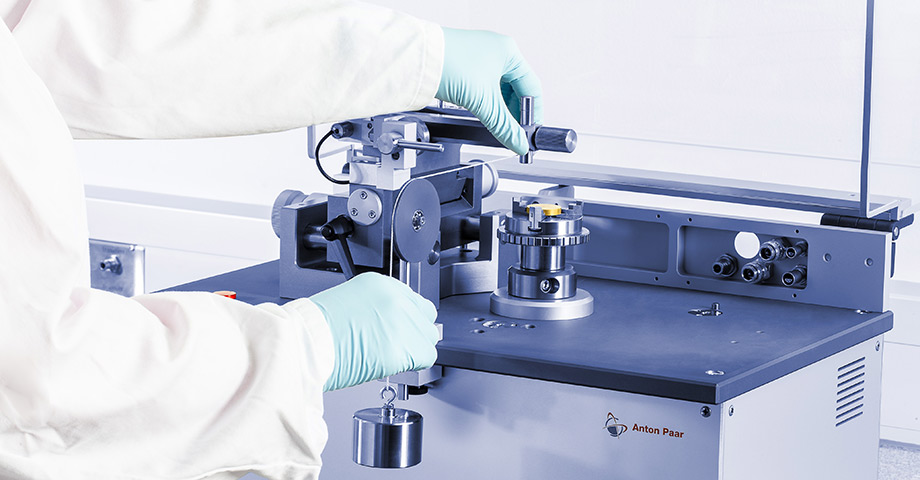

Coefficient of Friction Tester-Tribometer

-The Global Standard for Tribology The industry benchmark for measuring friction, wear, and lubrication with world-class precision and reliability. -Versatile Testing Configurations Wide range of parameters and contact geometries (Pin-on-disk, Ball-on-disk) to suit diverse research needs. -Certified Performance Verification Includes a reference sample kit to ensure instrument accuracy and consistent measurement results. -Integrated Environmental Monitoring Built-in temperature and h
รหัสเครื่องมือ
TRB3 , Anton Paar
ห้องปฏิบัติการ
507 ห้องปฏิบัติการทดสอบสมบัติทางกายภาพและสมบัติเชิงกล Physical & Mechanical Testing Laboratory
อัตราค่าบริการ
฿0.00 / ชม.
รูปแบบบริการ
-
ยังไม่เปิดให้ยื่นคำขอออนไลน์

รายละเอียดเครื่องมือ

Specifications - Coefficient of Friction Tester-TribometerTRB3 , Anton Paar

Property

Description

Technique

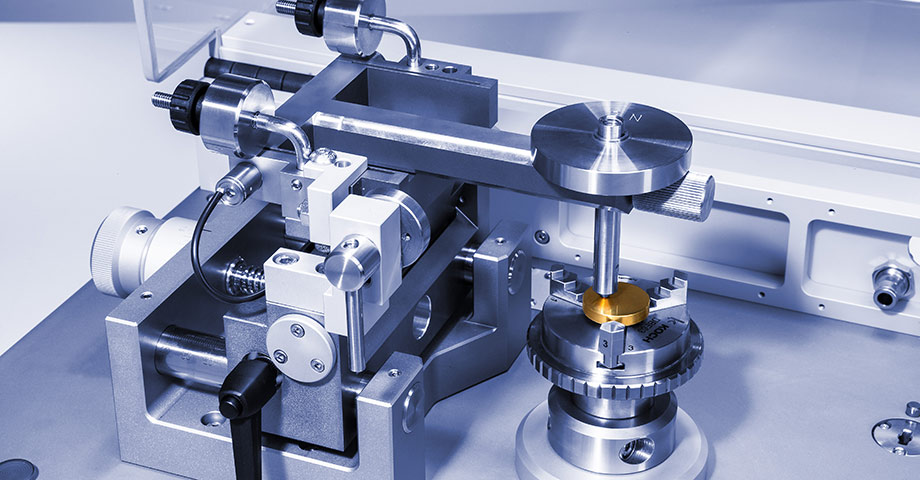

Pin-on-Disk and Ball-on-Disk Tribometry

Normal Force Range

Up to 60 N (Dead weight system)

Friction Force Range

Up to 20 N (Resolution: 0.06 mN)

Rotating Movement

0.2 rpm to 2,000 rpm (Radius up to 40 mm)

Linear Reciprocating

Stroke up to 60 mm / Speed up to 370 mm/s

Reciprocating Frequency

0.01 Hz to 10 Hz

Rotational Reciprocating

Speed up to 2,000 rpm / Angular res. 0.1°

Temperature Control

Up to 450 °C (Dry) / Up to 150 °C (Liquid)

Atmospheric Options

Vacuum (down to $10^{-7}$ mbar) / Humidity (15% to 95%)

Advanced Monitoring

Online wear depth (-2 to 2 mm) and Electrical Contact Resistance
