เครื่องกลึงซีเอ็นซี
การวางระบบ ออกแบบ ประดิษฐ์ และสร้างต้นแบบ

เครื่องกลึงซีเอ็นซี

CNC Lathe Machine

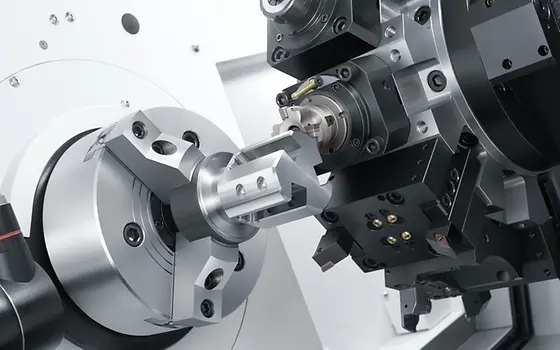

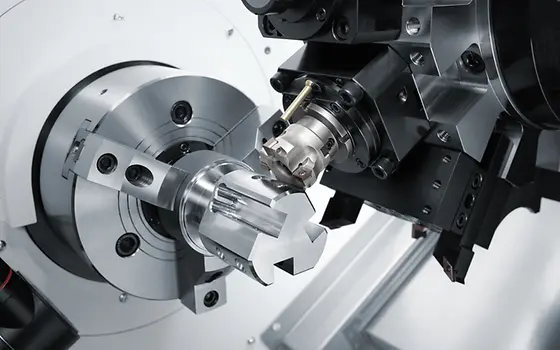

-Unmatched Rigidity with Box Slideways: Utilizes traditional box slideways for all axes (X/Y/Z), providing superior vibration damping and structural stiffness. This ensures high-precision cutting even when machining tough, advanced materials. -Advanced BMT (Built-in Motor Turret): Features a turret with a built-in motor for rotary tools, reaching speeds up to 10,000 rpm. This minimizes heat and vibration while delivering milling performance comparable to a machining center.
รหัสรายการ
NLX2500Y/700 DMG MORI SEIKI
ห้องปฏิบัติการ
102 ห้องปฏิบัติการตรวจสอบขนาด Measurement testing
รูปแบบบริการ
-
ยังไม่เปิดให้ยื่นคำขอออนไลน์

รายละเอียด

Specifications


Parameter

Specifications

Technique

CNC Lathe / Turning Center (High-Rigidity Type)

Max. Workpiece Diameter

460 mm

Max. Workpiece Length

1,255 mm

Max. Bar Capacity

Ø 90 mm

Travel Range (X / Y / Z)

260 / 100 / 1,345 mm

Turret Technology

BMT (Built-in Motor Turret)

Rotary Tool Speed

10,000 $min^{-1}$ (High-speed milling capability)

Slideways Type

Box Slideways (X / Y / Z axes) for maximum damping

Thermal Control

Thoroughly controlled thermal displacement

Control System

MAPPS (Mitsubishi)

Energy Efficiency

Integrated Energy-saving setting & visualization
